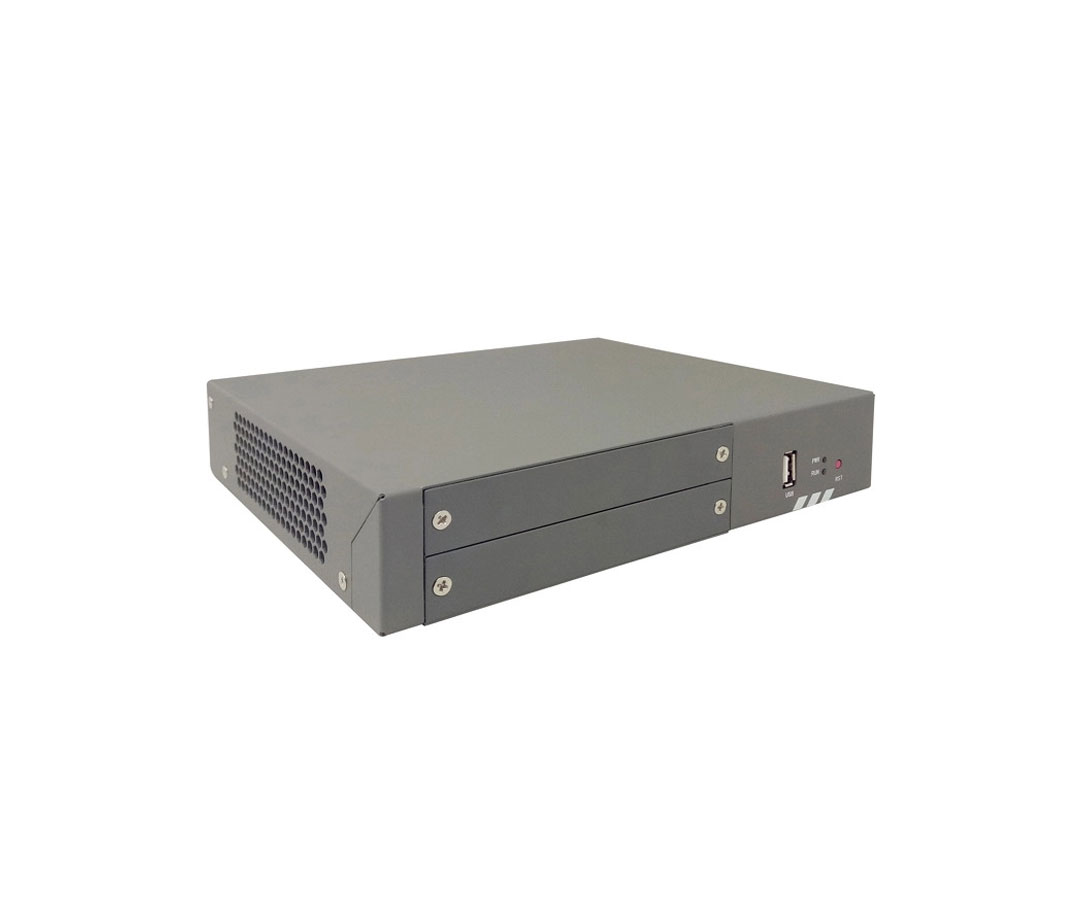

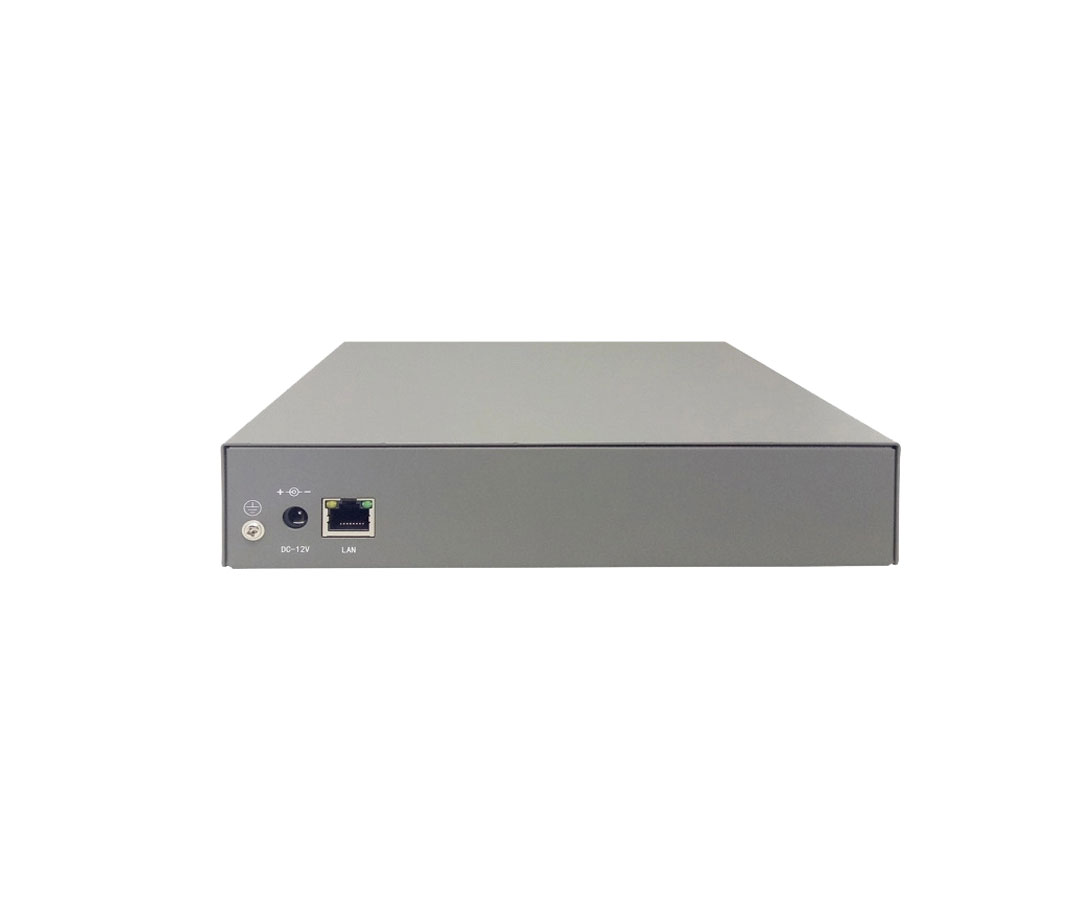

OpenVox VS-GW1202 V2 LTE Wireless Gateway

Description

The VS-GW1202 V2 Wireless Gateway, an update to the VS-GW1202 Series, is currently the most popular open-source Asterisk-based VoIP Gateway for SMBs and SOHOs. Users may simply personalize their Gateway because of the user-friendly interface and modular design. Also, secondary development is often completed through AMI (Asterisk Management Interface).

Features

  • Simple and convenient configuration via Web GUI
  • Support http / https / SSH
  • Basic security strategy(white/black list, security rules)
  • Optional GSM Voice Codec
  • SIP(RFC3261) compliance
  • Support diverse SIP, IAX2 protocols
  • Multiple SIP/IAX2 Registration models: None, server, client DTMF Signaling support: RFC2833, In band, SIPINFO
  • Real Open API Protocol(based on Asterisk)
  • Support static IP and DHCP
  • Call Duration Limit
  • CLIR(Call Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • SMSC/SMS/USSD
  • SMS bulk transceiver, SMS automatically resend, Sent to Email
  • Support HTTP SMS interface
  • SMS Forwarding
  • USSD transceiver
  • One Year Warranty
  • SMS remotely controlling gateway
  • IMEI number automatically modify
  • PIN identification
  • Mobile number portability (MNP)
  • Flexible routing settings & unlimited routing rules
  • Support DISA
  • Extensible Automatic Callback and Speed Dial
  • Customizable IVR
  • CDR(More than 200,000 Lines CDRs Storage Locally)
  • Support configuration files backup and upload
  • Support for custom scripts, dial plans
  • Least Cost Routing(LCR),according to Time, Port, Calling Number/li>
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with sip server, such as: Asterisk, Elastix, 3CX, Free SWITCH, etc.
  • Available for OEM
  • 3-Month "No Questions Asked" Return Policy
shape

VS-GW1202 V2 LTE Wireless Gateway Frequency Range

Module Type GSM WCDMA LTE
Band GSM 850/900/1800/1900MHz Europe
900/2100MHz @UMTS
900/1800MHz @GSM
America
850/1900MHz @UMTS
850/900/1800/1900MHz @GSM
Thailand
850/2100MHz @UMTS
850/900/1800/1900MHz @GSM		 India/China
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA: BC0
GSM: 900/1800MHz		 EMEA/Korea/Thailand
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8		 Australia/New Zealand/Taiwan/Brazil
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
